Particulate filter

Particulate filter
Particulate filter
Send Inquiry
Product Code : 01
Brand Name : ZHITAI
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 200-10000 USD ($)
  • Price Range
  • 200.00 - 10000.00 USD ($)
Product Description

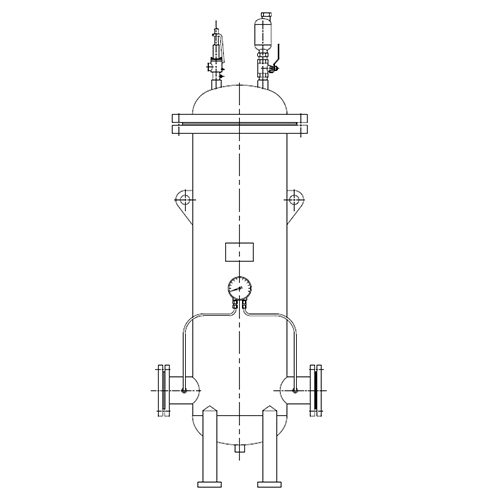

Particulate filter consists of filter element, shell and air evacuation valve, pressuredifferential gauge, drain valve, sampling joint and other accessories. Thefiltered oil goes through the inlet tube into the lower part of the filtershell, and then from the outside of the filter to the inside, the thickerparticles will precipitate immediately (released by the sewage outlet) and thesmaller particles will be intercepted by the filter element. The final cleanoil is collected through the filter tray, and the outlet pipe flows out of thefilter. As the amount of oil filtered increases, the pollutant deposited on thefilter core will cause the pressure difference of the filter to rise. When thepressure difference rises to 0.15MPa, it indicates that the filter core hasbeen blocked and should be replaced or cleaned.

Technical parameters

  • Interface form: Screw thread. Flange.
  • INLET & OUTLET: DN50~DN300
  • Filtration precision: 3um-500um
  • Working pressure:0.3-6.4MPa
  • Working temperature: 65ƒ
  • Filter element material: Vegetable fibre. Fiberglass. SS304. SS316
  • Filter housing material: Carbonsteel. SS304. SS316L
Application field
  • Diesel oil
  • Gasoline
  • Kerosene
  • Aviation kerosene
  • All hydrocarbon fuels, including diesel & biodiesel
Trade Information
  • FOB Port
  • SHANGHAI
  • Payment Terms
  • Others, Western Union, Telegraphic Transfer (T/T)
  • Supply Ability
  • 100 Per Month
  • Delivery Time
  • 10 Days
  • Packaging Details
  • Carton or wooden case
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
